烨弘轩电子最新到货 有最新批号 朱生 13410068358 微信同号 可提供样品 批量 方案 技术资料 技术支持 竭诚为您提供优质服务。需要查询更多产品 www.yhx-group.com 。

104040002  104060007  104110009   有现货 可添加我们联系方式获取最优惠价格

原厂原包原标原装每一片都来自正规渠道每一片都可追溯

Seeed Studios Touchscreens are display solutions for the Raspberry Pi, Xadow, Beagle Bone Black, and other boards. These touchscreens include a 5" 800x480 Capacitive TouchScreen, Raspberry Pi 7" Touchscreen Display, 5" HDMI Display with USB TouchScreen, Xadow 1.54" Touchscreen, and 7" 1024x600 Capacitive Touch Screen DIY Kit.

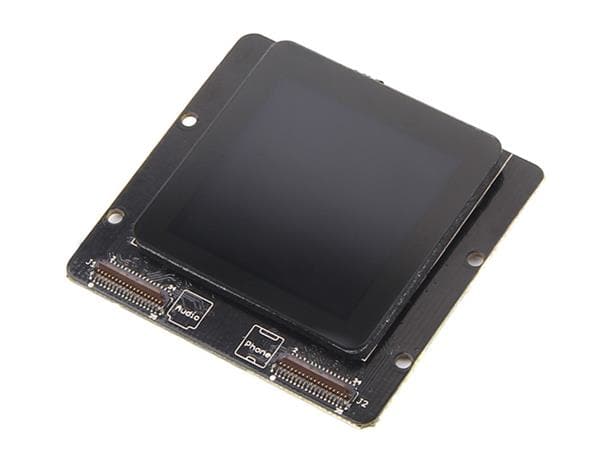

Xadow 1.54" Touchscreen

Seeed Studio Xadow 1.54" Touchscreen is a TFT display that contains 240X240 pixels that can be controlled individually to display up to 262K colors. Above the display is a layer of capacitive touchscreen, offering 29.4X29.4mm active area at the center of display.

This single touchscreen can detect finger presses anywhere within the active area during the normal operations. The TFT driver is based on the ST7789S IC Driver with 2-bit data and 4-bit control serial interface while the capacitive touchscreen controller uses I2C.

Features

240x240 resolution

Display up to 262K colours

4x 2mm/0.9"mounting holds

Built-in Xadow Connectors for easy pluggable FPC cables

Perfect choice for your DIY phone project

104040002制造商: Seeed Studio

产品种类: 显示开发工具

商标: Seeed Studio

工厂包装数量: 1

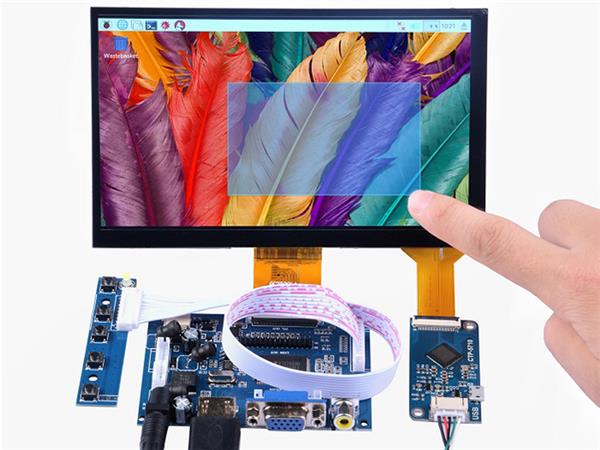

7" 1024x600 Capacitive Touch Screen DIY Kit

Seeed Studio 7" 1024x600 Capacitive Touch Screen DIY Kit is a new kit for makers that features a fantastic HDMI monitor with capacitive touch screen and is driver free. The touchscreen has added a CTP driver board and a capacitive touchscreen to make it a whole new suite. Calibrating the touchscreen is not needed, and has been tested on Raspberry Pi, Beagle Bone Black, PC and Mac book.

Features

Supports 1024x600 resolution and supports approximate 30fps, maximum 60fps

The capacitive touch function give the user full control over any device

It's driver free for your device due to built-in EDID device information

It is very easy to let the equipment correctly identified the touch screen

The Capacitive USB touch screen can support functions of the right mouse button and drag and drop

It can support multipoint touch, maximum 10 points (only test in

104060007 制造商: Seeed Studio

产品种类: 显示开发工具

产品: Do It Yourself Kits

工具用于评估: 7 inch LCD

工作电源电压: 5 V

接口类型: LVDS, USB

尺寸: 265 mm x 165 mm x 50 mm

商标: Seeed Studio

用于: Raspberry Pi

工厂包装数量: 1

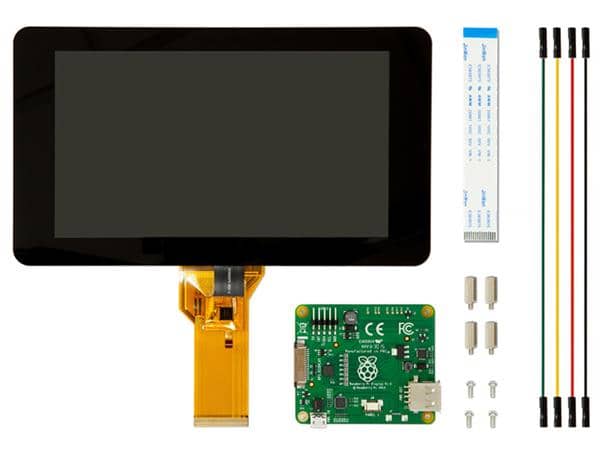

Raspberry Pi 7" Touchscreen Display

Seeed Studio Raspberry Pi 7" Touchscreen Display gives the ability to create all-in-one, integrated projects like tablets, infotainment systems and embedded projects. The 800x480 display connects via an adapter board which handles power and signal conversion.

Only two connections to the Pi are required; power from the P'’s GPIO port and a ribbon cable that connects to the DSI port present on all Raspberry Pis.

Touchscreen drivers with support for 10-finger touch and an on-screen keyboard are integrated into the latest Raspbian OS for full functionality without a physical keyboard or mouse.

Features

7" Touchscreen Display

Screen Dimensions: 194x110x20mm (including standoffs)

Viewable screen size: 155x86mm

Screen Resolution 800x480 pixels

10 finger capacitive touch

Connects to the Raspberry Pi board using a ribbon cable connected to the DSI port

Adapter board is used to power the display and convert the parallel signals from the display to the serial (DSI) port on the Raspberry Pi

104110009 制造商: Seeed Studio

产品种类: 显示开发工具

商标: Seeed Studio

工厂包装数量: 1

单位重量: 513 g

深圳市烨弘轩电子有限公司，我司2011年成立于中国经济特区深圳.我司专注于为全球电子企业提供优质的电子零件供应服务，竭力打造全球品牌元器件零售与批量供应中心。专业经营各类电子元器件（集成电路IC，存储芯片，分立器件,电源,无源元件,连接器,继电器,传感器,光电子,开关,保险元件,紧固件,开发工具,变压器,测试与测量等）。 我们以低成本提供全方位一站式电子元件供应链采购方案，包括但不仅限于电子元件紧急物料搜寻，电子元件齐套供应、电子元件降低成本的长期供应，库存寄售等一系列供应链解决方案。优势供应各类电子组件.

==================

深圳市烨弘轩电子有限公司 重点客户遍布中国内地 港 澳 台地区，另外欧美发达国家以及 一代一路沿线发展中国家我司也有大量长期合作的优质客户。

==================

深圳市烨弘轩电子有限公司 为一般纳税人 可开具17%增值税票   有合作基础可申请月结，延长账期等多种供货付款方式。

==================

公司经营目标：整合全球资源全 芯 全意为您服务。

公司服务宗旨：客户虐我千百遍，我待客户如初恋。

==================

主营 :  主动电子元器件 集成电路 IC 芯片 （AD TI  MAX NXP ST LT XILINX ALTERA）等。

==================

联系方式: 您可以通过下面任意一种方式 联系到我们

企业网站：www.yhx-group.com

shype： pretying

阿里旺旺：cd_prety

微信号：yihuazhu666

销售经理：朱宜华    深圳市烨弘轩电子有限公司   深圳市福田区上步工业区204栋5楼东座516室

电话:  0755-82548684 多线

传真:  0755-82523504

手机:  13410068358

QQ  :  746277983 1520285168

微信号:  yihuazhu666

邮箱:   zyh1818118@126.com

==================

烨弘轩电子郑重承诺：

我司所售物料 可提供样品 批量 方案 技术资料 技术支持。所有物料都是 原厂原包原标原装，每一片都来自正规渠道，每一片都可追溯。
