5335B制造商: B&K Precision
产品种类: 功率分析仪
类型: Single-Phase Power Analyzer
电流额定值: 20 A
电压额定值: 600 V
频率: 100 kHz
准确性: 0.1 %
显示器类型: LCD, Backlit
通道数量: 2 Channel
高度: 88.2 mm
长度: 354.6 mm
宽度: 214.5 mm
商标: B&K Precision
产品类型: Analyzers
工厂包装数量: 1
子类别: Test Equipment
单位重量: 2.8 kg

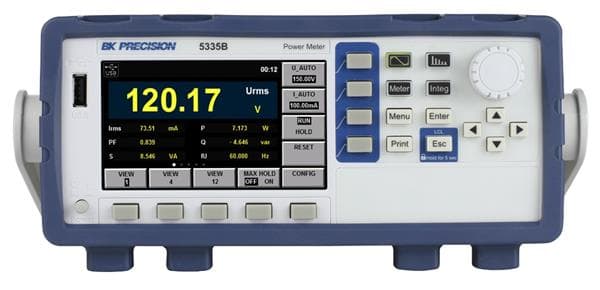

BK Precision 5335B Single-Phase AC/DC Power Meter is a compact meter for measuring and analyzing power consumption and power quality parameters quickly and accurately. The 5335B supports power measurements up to 600Vrms and 20Arms, with a bandwidth up to of 100kHz. The device features rich measurement functions and can measure all AC and DC parameters, including power, current, voltage, power factor, frequency, and phase. The meter also offers a powerful integration function, the ability to perform harmonic measurements, and an oscilloscope mode for viewing voltage and current readings in the time domain. 12 real-time parameters can be measured and displayed simultaneously in user-customizable views.
With an intuitive user interface, the large 4.3-inch color LCD screen enables easy viewing of configuration and measurements. Four main measurement modes (meter, harmonic, integral or oscilloscope) can be accessed using the dedicated function keys. The results are displayed in a numeric and graphical format and screenshots can be saved directly to a USB flash drive. Voltage, current, active power, reactive power, and phase values of each harmonic can be measured and displayed as a list or bar chart, enabling the user to quickly visualize and analyze the results. Total harmonic distortion (THD) can be evaluated up to the 50th order with the ability to display individual harmonic components.
Many industrial products use PWM as a speed control method. The 5335B is able to measure input signals ranging from 0.5Hz to 100kHz and input voltages up to 600V. Current can be monitored directly or by using external industry standard sensors. Current measurements above 20A are supported by connecting an external current sensor to the external sensor interface. The integration function is useful for analyzing bought and sold electrical energy on grid-tied power systems. BK Precision 5335B meter provides current integral and active power integral (Wh) functionality using automatic range switching for accurate measurement results.
The optional TLBB53 breakout box simplifies AC line connection between the power meter and the DUT and eliminates the need to cut the power cord and strip wires to connect to the power meter. This breakout box supports easy plug-in connection and uses a universal socket to support most plugs used worldwide. A circuit breaker/switch is also provided for additional protection.
Features and Benefits
600Vrms (Cat II) and 20Arms direct input ranges
DC Frequency ranges: 0.5Hz to 100kHz
0.1% basic accuracy for voltage and current measurements
4.3-inch color LCD (TFT)
Simultaneously measure and display up to 12 measurement parameters
Capture inrush current and voltage surge with the peak function
Harmonic measurements to the 50th order
Integration function with automatic range switching
Ability to measure electrical energy which is produced or consumed
Pre-compliance testing according to IEC/EN 62000-3-2/4-7
Standard USB (USBTMC-Compliant), GPIB, RS232 and LAN interfaces
Line and frequency filter capability for reducing unwanted signal noise
Optional universal breakout box to simplify connection between power meter and DUT
Applications
Measure power
Electrical energy bought or sold back to the power grid
Inverters
Harmonics of motors
Un-interruptible power supplies
Appliances
Consumer electronics
